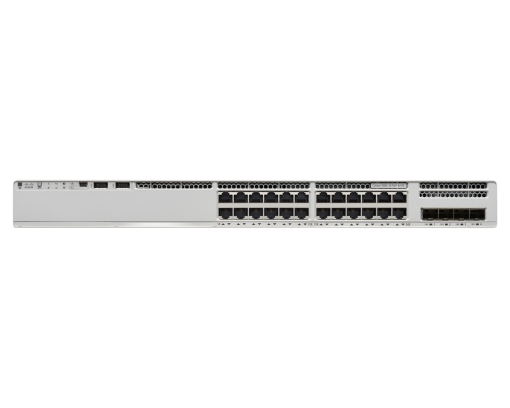

C9300L 24-port data, 4x10G Uplink, 350wac PS, w/MERAKI

The Catalyst 9300L-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300L-M provides multigigabit ports, 320GB stacking with four fixed 10G uplinks. The Catalyst 9300L-M delivers resiliency with fast stack convergence. The Catalyst 9300L-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300L-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.
Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

Features

• Layer-3

• Four SFP+(10G/1G) fixed uplinks on all models

• mGig support on UPOE models

• 320G Dual Dedicated Hardware Stacking Ports

• UPOE (60W per port) & IEEE 802.3bt type3

• Redundant hotswappable power supplies and replaceable fa
